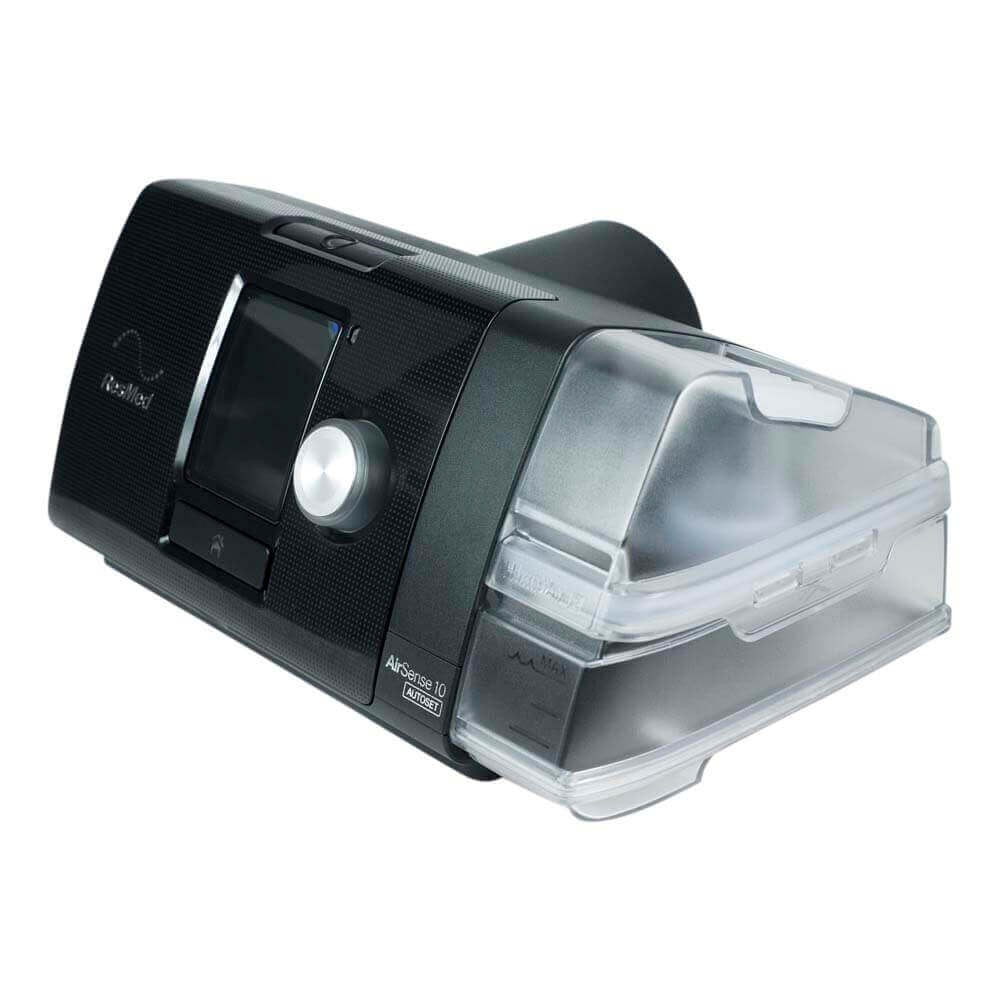

The ResMed AirSense 10 CPAP machine features a user-friendly display with various symbols and icons that help users navigate settings and monitor their therapy. Here's a guide to understanding the common display symbols on the AirSense 10:

Common Symbols and Their Meanings

  1. Home Screen Icon

    • House Icon: Indicates the home screen, where you can access main menu options and settings.

  2. Therapy Status

    • Mask Fit: A smiley face or a frown face indicating if the mask fit is good or needs adjustment.
    • Ramp: An upward-sloping curve icon showing that the ramp feature is active, gradually increasing pressure to the prescribed level.

  3. Humidity Level

    • Droplet Icon: Indicates the current humidity level setting of the humidifier. More droplets mean higher humidity.

  4. Heated Tube

    • Coiled Line Icon: Indicates the heated tube setting. The presence of this icon shows that the heated tube is connected and functioning.

  5. MyAir Connection

    • Cloud Icon: Indicates connectivity to the MyAir app, allowing for data tracking and reporting.

  6. Airplane Mode

    • Airplane Icon: Indicates that airplane mode is active, disabling wireless communication for safe use on airplanes.

  7. Leak Alert

    • Red Triangle with an Exclamation Mark: Indicates a significant air leak, usually due to mask fit issues.

  8. Power Indicator

    • Power Plug Icon: Indicates the machine is plugged in and receiving power.

  9. Pressure Indicator

    • Number with cmH2O: Displays the current pressure setting in centimeters of water (cmH2O).

  10. Settings Icon

    • Gear Icon: Access to the settings menu where you can adjust various therapy parameters.

  11. Sleep Report

    • Bar Chart Icon: Access to the sleep report, which provides data on your recent therapy sessions.

Tips for Navigating the Display

  • Adjusting Settings: Use the dial to scroll through options and press it to select. The back button allows you to return to the previous menu.
  • Monitoring Therapy: Regularly check the display for any alerts or changes in therapy status to ensure optimal treatment.
  • Understanding Alerts: Pay attention to any warning icons, such as the leak alert, to address issues promptly.

Understanding these symbols and icons will help you effectively use your ResMed AirSense 10 CPAP machine and manage your sleep therapy. For detailed information, refer to the user manual or contact your healthcare provider.
